1969-1970 Lotus Cortina Dash Wiring

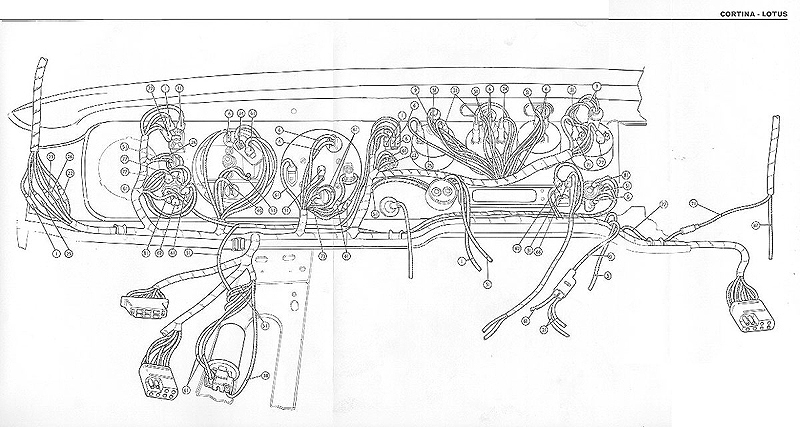

(Click diagram above for larger "portrait" printable image)
Note diagram is of the backside of the dash and instruments for a Right Hand Drive (RHD) vehicle.
(Click diagram above for larger "portrait" printable image)
Note diagram is of the backside of the dash and instruments for a Right Hand Drive (RHD) vehicle.
| Code | Color | Code | Color | |
| 1 | Red | 47 | Blue/Light Green tracer | |
| 4 | Red/Blue tracer | 51 | Black | |
| 5 | Red/Black tracer | 52 | Black/Red tracer | |
| 6 | Red/White tracer | 57 | Black/Light Green tracer | |
| 7 | Red/Light Green tracer | 61 | White | |
| 8 | Red/Brown tracer | 62 | White/Red tracer | |
| 11 | Yellow | 64 | White/Green tracer | |
| 14 | Yellow/Green tracer | 65 | White/Blue tracer | |
| 19 | Yellow/Purple tracer | 66 | White/Black tracer | |
| 21 | Green | 68 | White/Brown tracer | |
| 22 | Green/Red tracer | 71 | Brown | |
| 23 | Green/Yellow tracer | 73 | Brown/Yellow tracer | |
| 24 | Green/Blue tracer | 74 | Brown/Green tracer | |
| 25 | Green/Black tracer | 77 | Brown/White tracer | |
| 26 | Green/White tracer | 79 | Brown/Purple tracer | |
| 31 | Light Green | 80 | Brown/Orange tracer | |
| 34 | Light Green/Blue tracer | 81 | Purple | |
| 35 | Light Green/Black tracer | 82 | Purple/Red tracer | |
| 38 | Light Green/Brown tracer | 85 | Purple/Blue tracer | |
| 41 | Blue | 86 | Purple/Black tracer | |
| 42 | Blue/Red tracer | 87 | Purple/White tracer | |
| 45 | Blue/Black tracer | 91 | Pink/White tracer | |
| 46 | Blue/White tracer |
Click for Printable Electrical Wiring Color Code List.
